Quick Installation Guide DX Panel 14x17 Wireless

1. Components

2. Battery

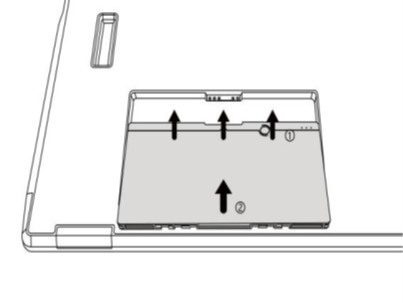

Make sure that connectors on the battery pack are pointed to the opening in the battery compartment.

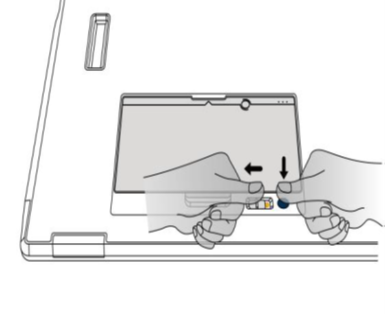

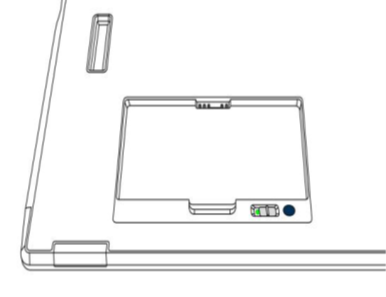

Slide battery package into battery compartment          Press the button and push the lock until the

                                                                                      battery is firmly locked in

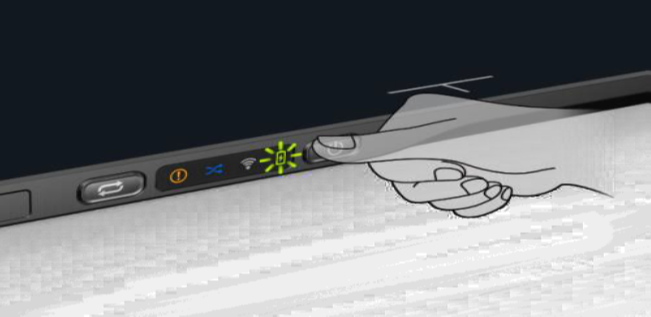

Press the button for 4 seconds to turn on the detector. It will turn on as long as the battery is inserted, and the capacity is not less than 15%.If it does not turn on, try connecting the magnetic DC power cable.

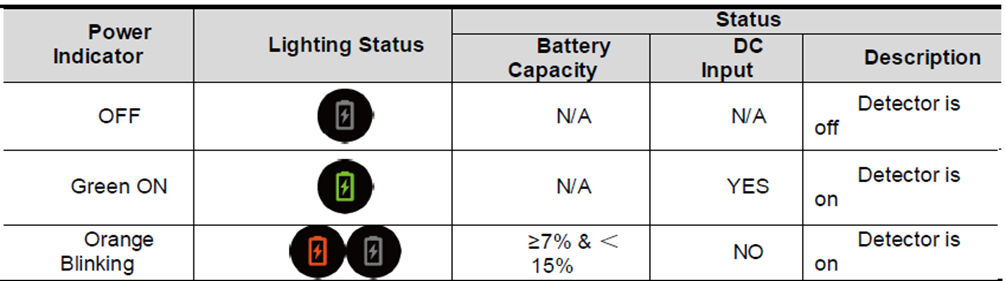

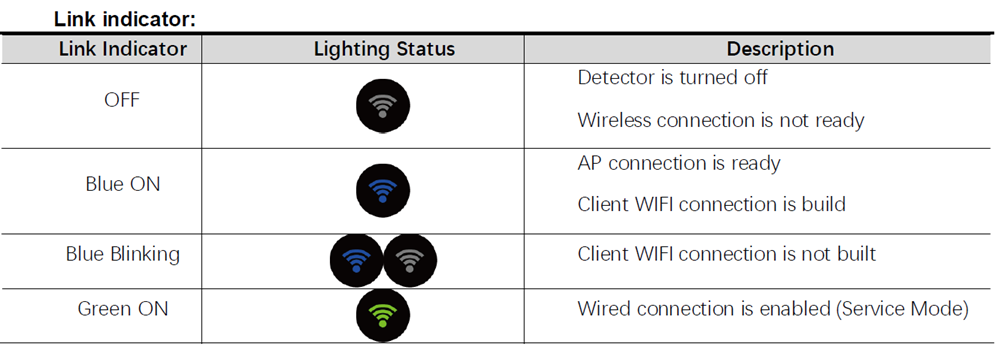

3. Power Indicator



AP Mode Indicator

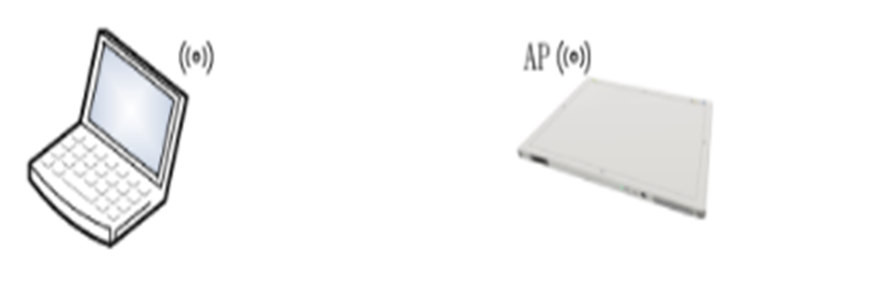

4. AP Mode

Connect to the SSID

Disable- Energy Efficient Ethernet

5.   OPEN EXAMVUE ACQUISITION SOFTWARE

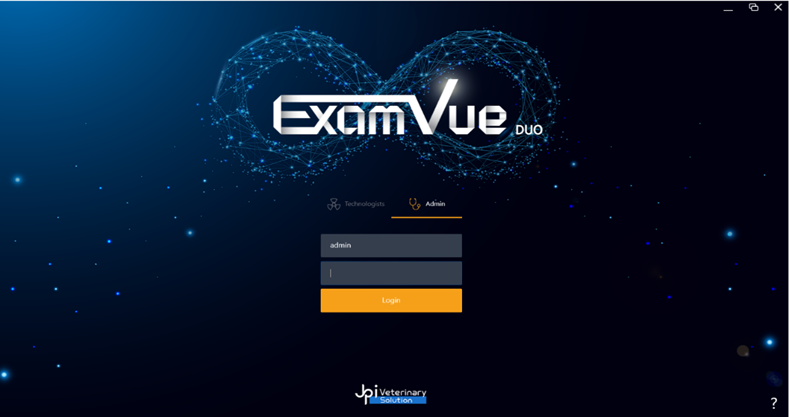

6. Login

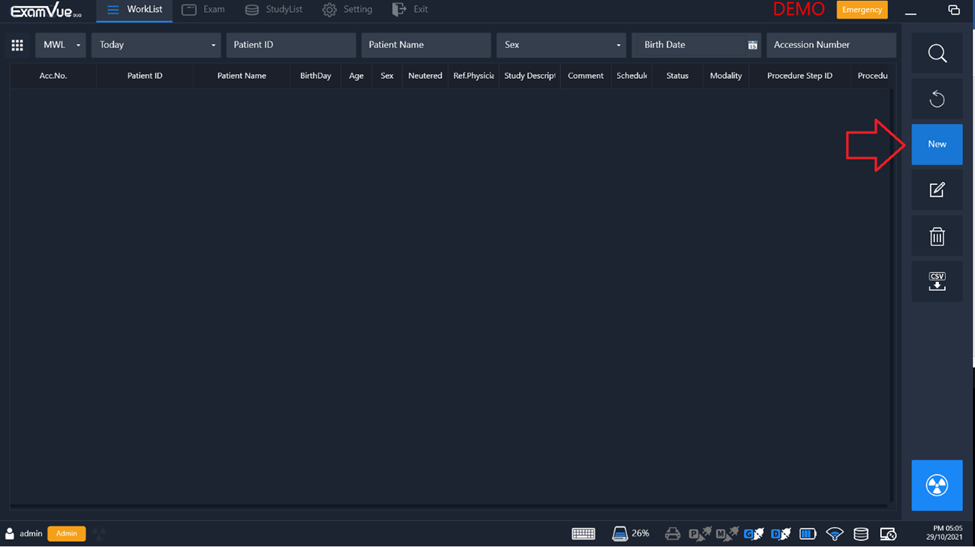

7.  PATIENT REGISTRATION



Enter “ ID” , “Name”,”Sex”,”DOB” Click Save and Click Next



1. Select Species

2.Select Body Part

3.Select Projection.

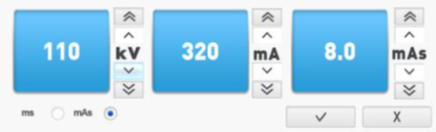

4. Click on Radiation Icon

System is Ready to Acquire

Take an X-Ray



Close Study
