DX Wireless Setup

DX Wireless Setup

Set Up Router Connection

                                       1. First Step

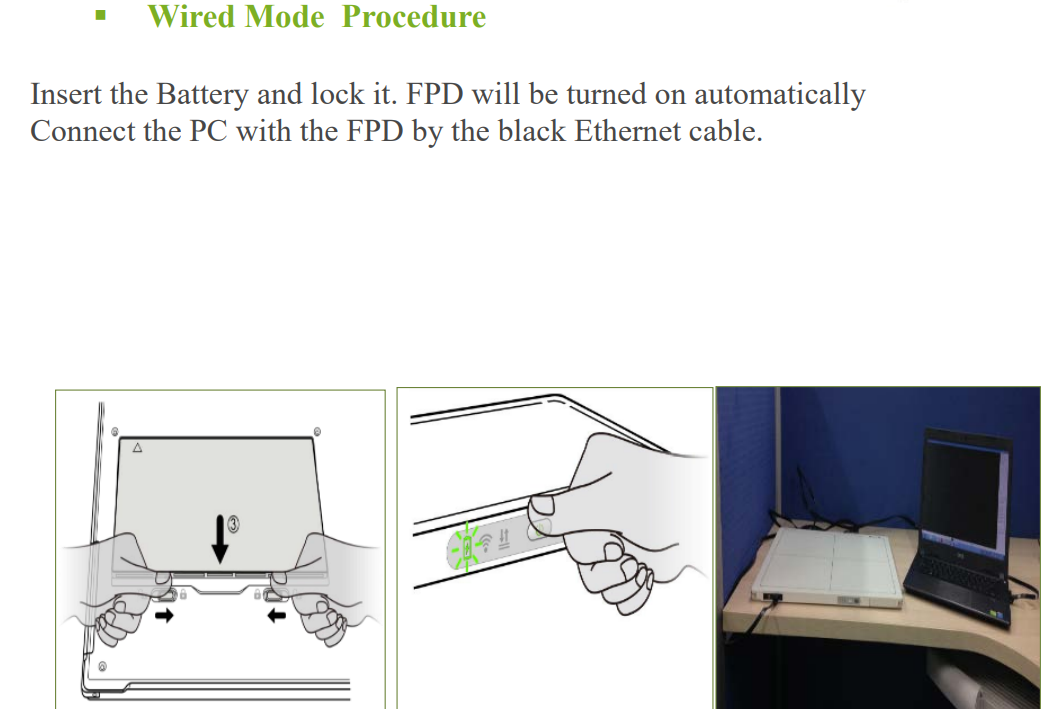

                                       Wired the Panel.

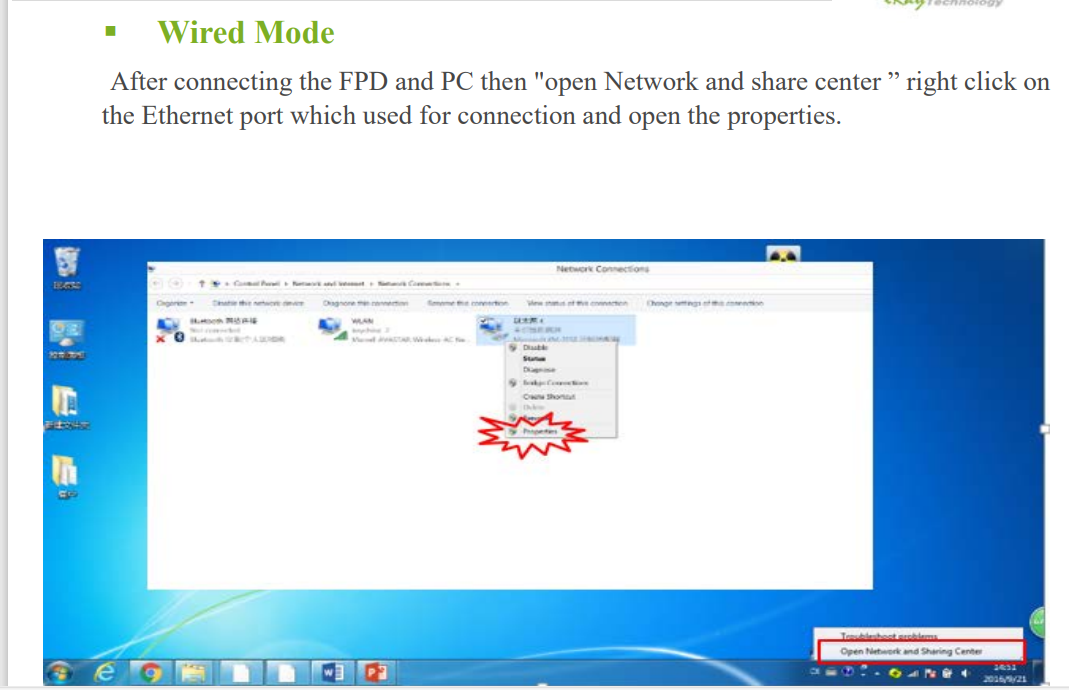

                                      2. Set up the IP on the computer.




                       3. Computer IP needs to be, 192.68.8.188




4. Open JPI Control Center , located on the C:\ExamvueDuo\Detector\iRay



                                 5. Select panel and click Connect.

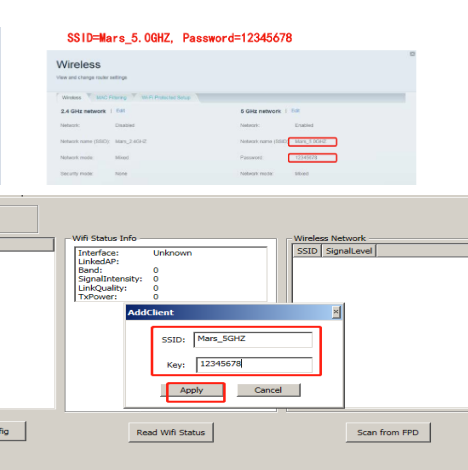

                    6. Set up SSD name and password and select APPLY.

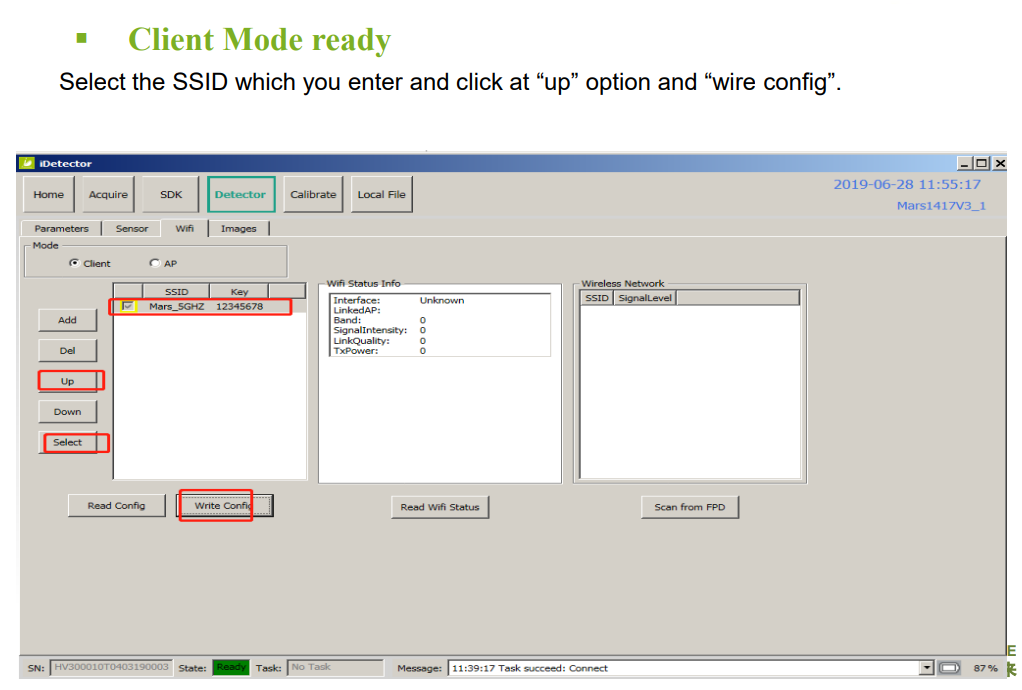

                                7. Select WRITE CONFIG.


                8. Connect to the Router.

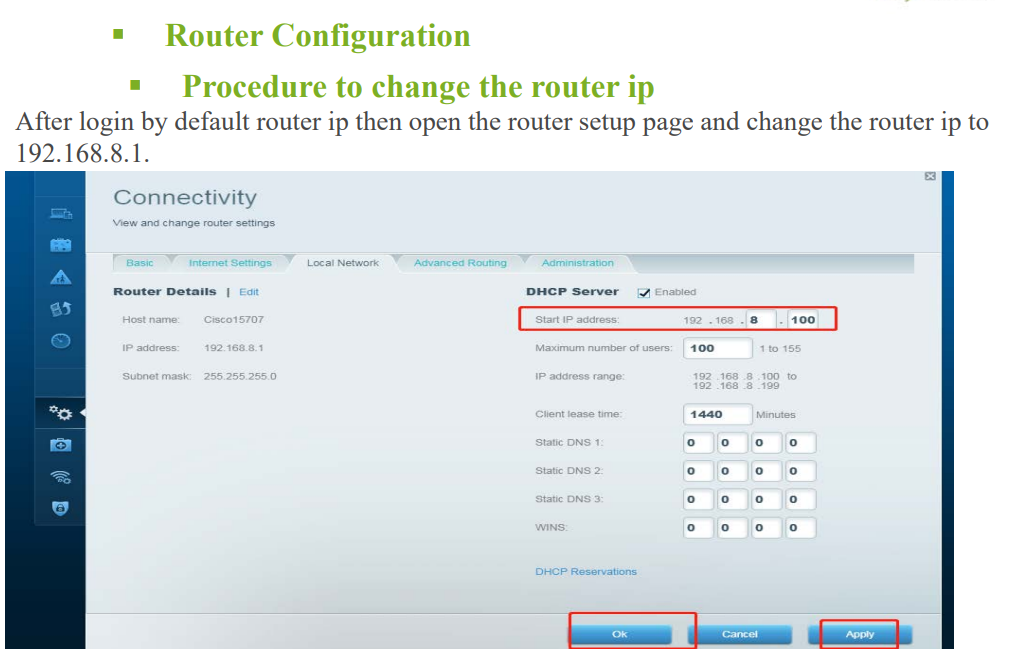

              Set Router to IP: 192.168.8.1
                Login into Router



             9. Match the same SSD created on the JPI Control center.



           10. SSID - on control Center and Router NEED TO MATCH.
