CubeX Error 007

Error 007

Ready SW ERR / Ready switch Malfunction

1. Removed completly hand or footswitch from  port and re-insert .

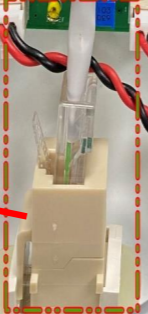

As shown in the picture, if there is no error code when disconnecting the cable, the cable needs to be replaced.

If error code is generated after cable removal, OP BOARD defect , please contact support

When damage is confirmed visually, replacement is required , Please contact support.

2 . Replace the hand switch ,  if the error keeps occuring contact support.
