1.     Install the “ExamVue Duo Medi Setup 1.0.0.10.exe”

2.     Patch the file of “ExamVue Duo Medi 1.0.0.10 patch.zip”

3.     Open Firefox broswer.

You need to access to the generator’s web page to change the configuration of the generator

4.     Input the IP address “192.168.40.60” to login the page

5.     Input the ID and PWD

6.     Click the Config menu

7.     Uncheck the TCPIP-KONICA

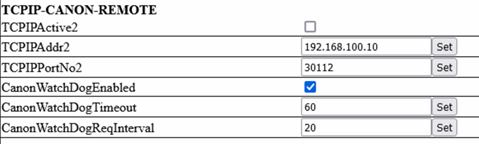

8.     Uncheck the TCPIP-CANON-REMOTE

Actualy, we don not use the above settings

9.     Set the COLLIMATORCONTORL as the following.



10.  Check the configuratation and

11.  Move to the C:\ExamVue Duo\ and open the Configuraiton.ini

12.  Find the “Generator” session and set the Settings below



13.  Run the ExamVue Duo.exe

14.  Go to the Exam Window and control the X-ray chart
