.                                    Installation

a.         Position and setup your computer in a convenient location shielded from x-ray radiation.

b.         Log in to the computer. The password is "jpi"

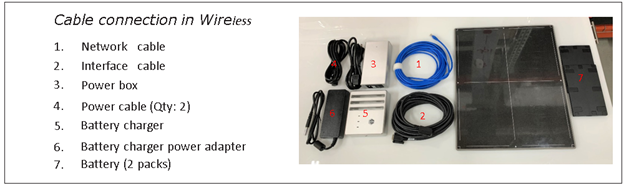

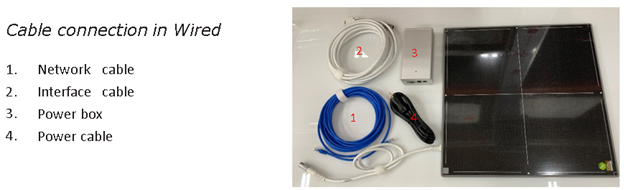

c.         Place the detector into your table or wall bucky, if you are using one. Make sure the cable is accessible.

d.         Connect the silver power box to 110VAC power.

e.         Connect the white or black cable from the power box to the detector.

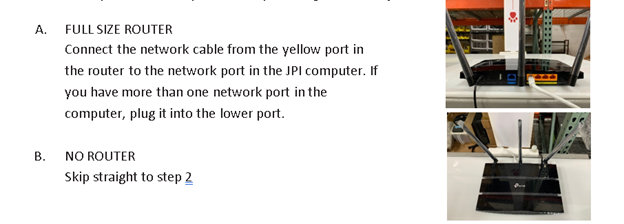

f.          Connect the blue network cable from the interface box to the computer. If your computer has two network ports, you should connect it to the lower port.

g.         Turn on the power box.

h.         Turn on the detector and wait 1 minute to make sure it has started. You should see a solid green light on the side.

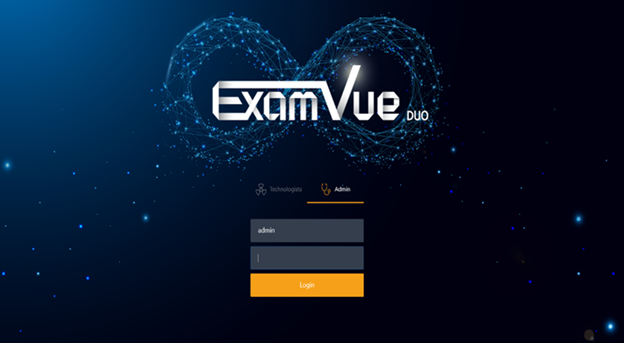

                               Open ExamVue Duo
