Quick Installation Guide DX Panel 17x17 Tethered

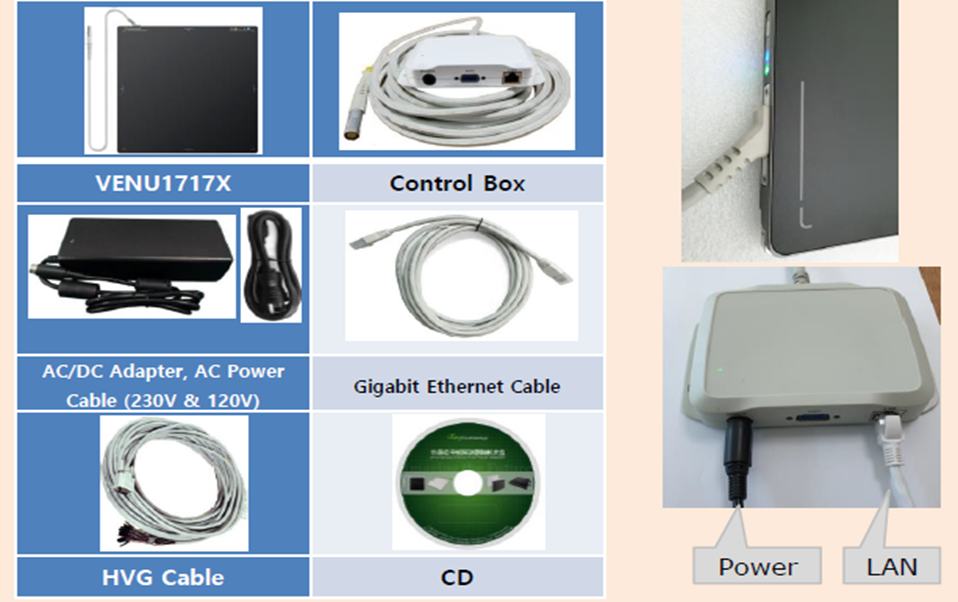

1. Components

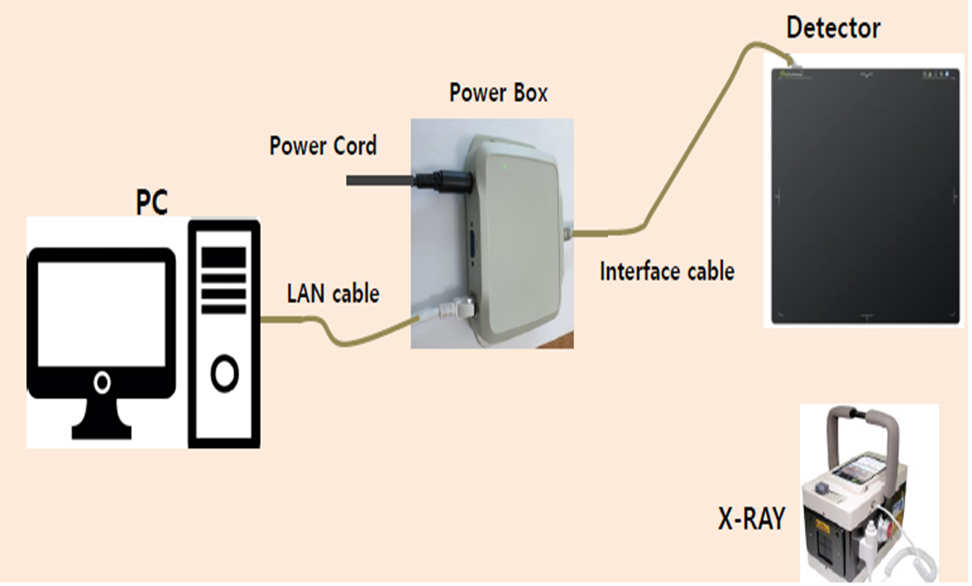

2. Hardware Connection

3. Open ExamVue Duo Acquisition Software.

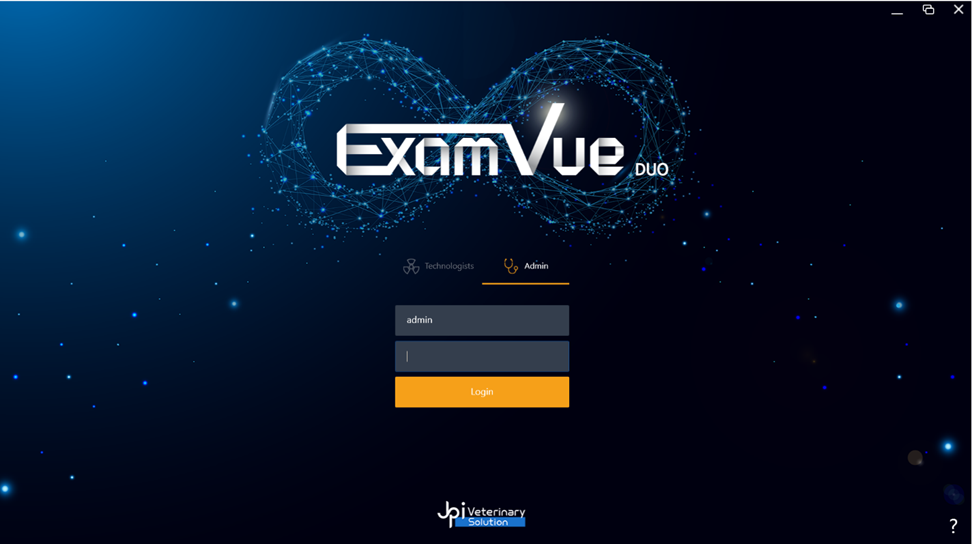

4. Login

    Click “Login“ after entering the password “admin”

5. Register a Patient.

Enter “ ID” , “Name”,”Sex”,”DOB” Click Save and Click Next

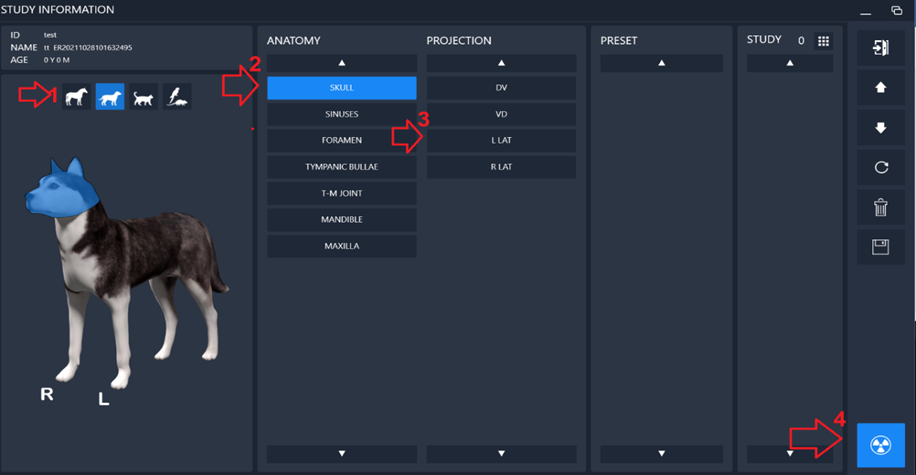

1. Select Body Part

2. Select Projection

3. click on Radiation Icon

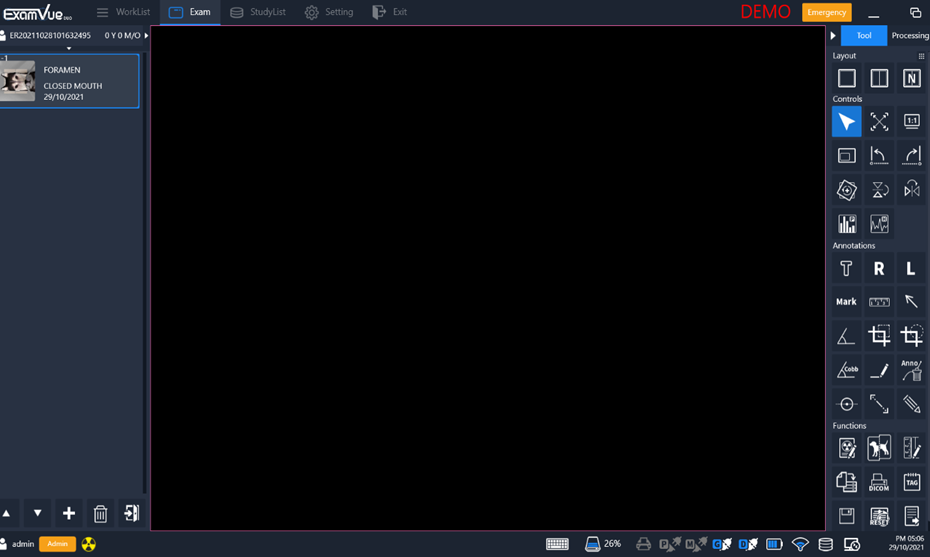

System is ready

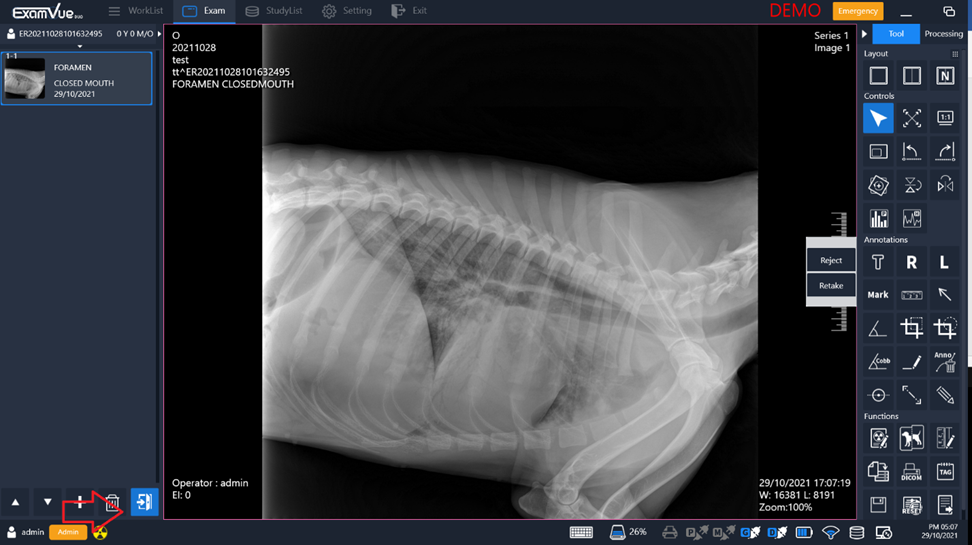

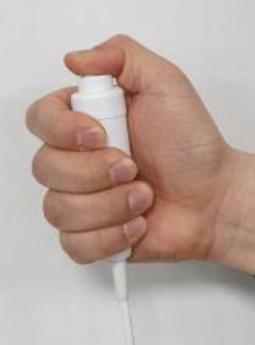

Take an X-ray

Close Study
