CubeX Integration with ExamVue Duo Vet

Step 1

1. Set up USB cable ( A-B Type)    2.0 Type



  2. Conect USB Cable between Computer and Rear side of the CubeX.

a. Computer                                   b.  CubeX Portable



2. Install CubeX Drivers

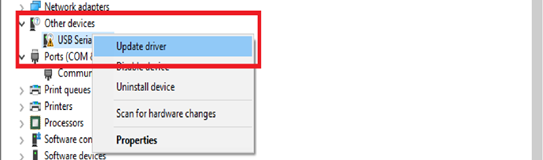

Click “ update Drivers”

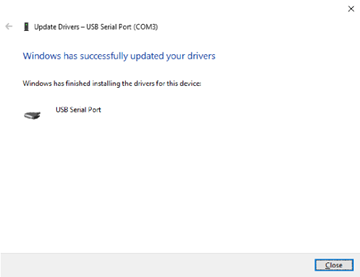

Drivers installed completely

3. After set-up, please verify the Serial port number. (ex. COM1, COM2 or COM3)

Step 2

1. Open Management software.


         ExamVuo Duo Management Icon

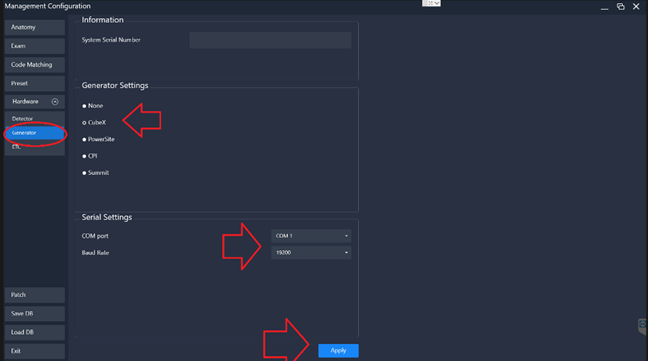

1. Select Generator and port number and band rate number click apply



              Click on EXIT

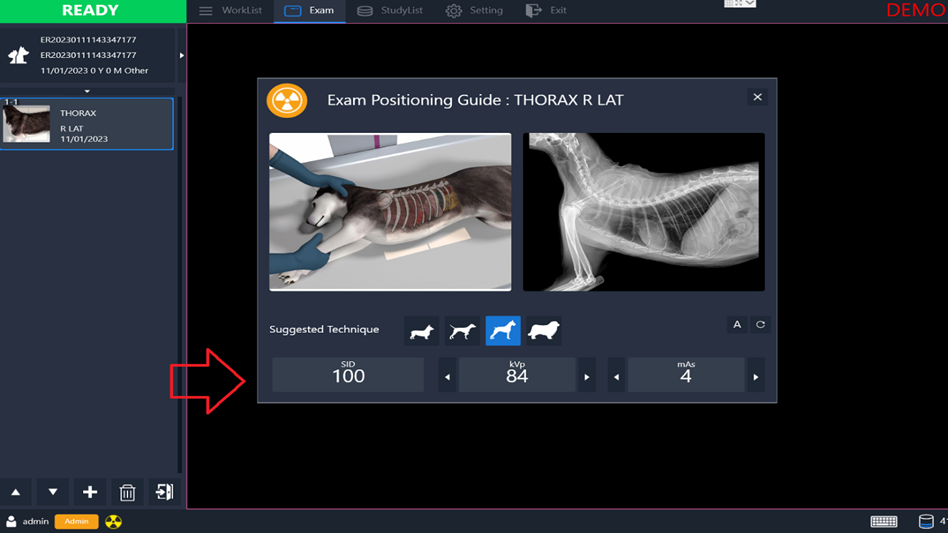

Controls are now Sync with ExamVuo

​
