Calibration Apex Panel and Examvue Duo Setup
select IP address of computer
Note Panels IP address is 192.168.1.3 Select the IP address of the computer.

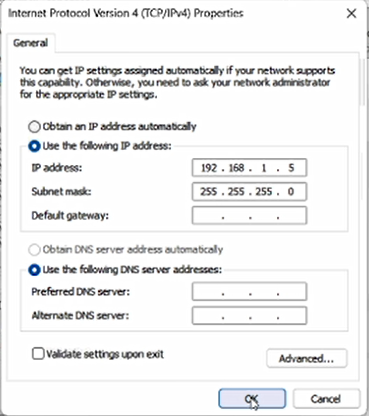

Set the computer's IP address to 192.168.1.5.
Open the Calibration software

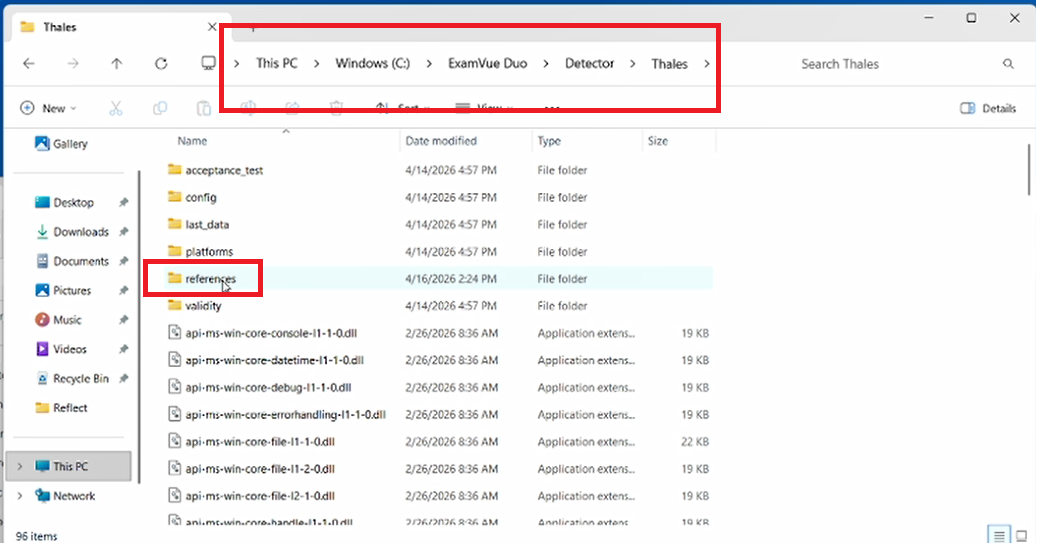

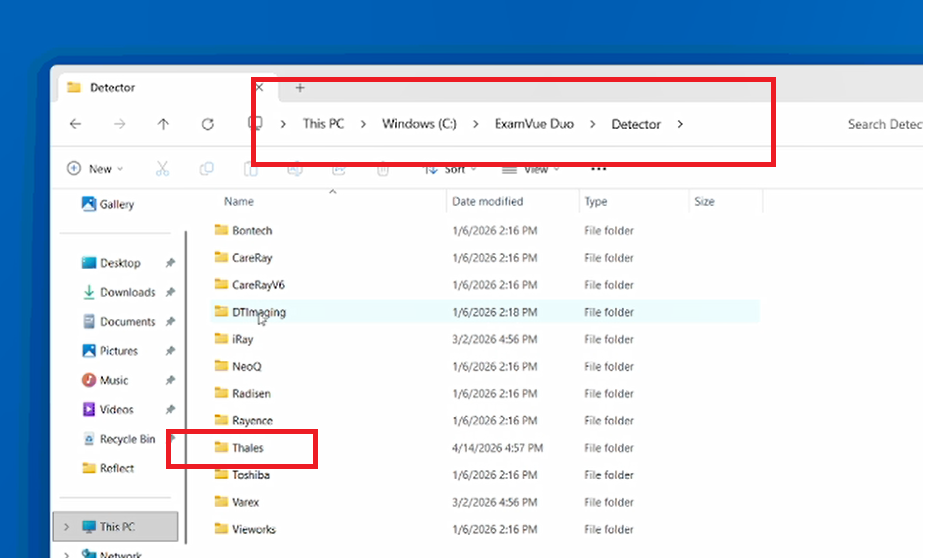

Located Examvue Duo / Detector / Thales To begin, launch the Calibration software. This is found in the following location: Examvue Duo / Detector / Thales.

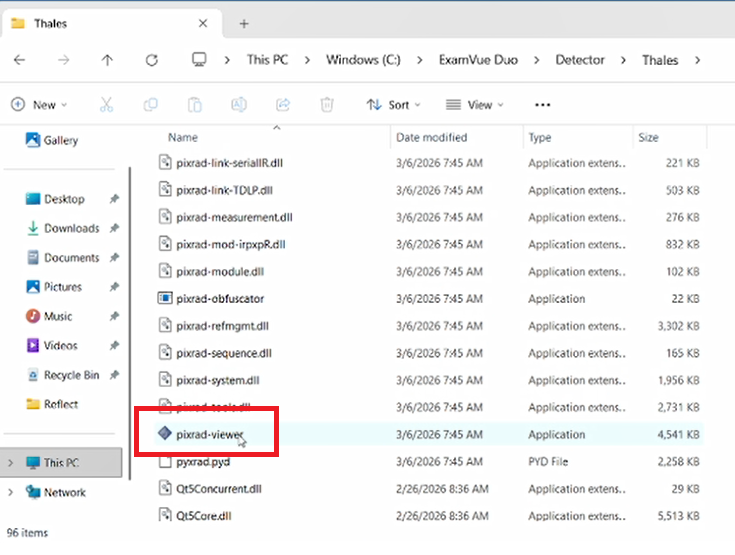

Choose the PixRad Viewer, which is the calibration software.

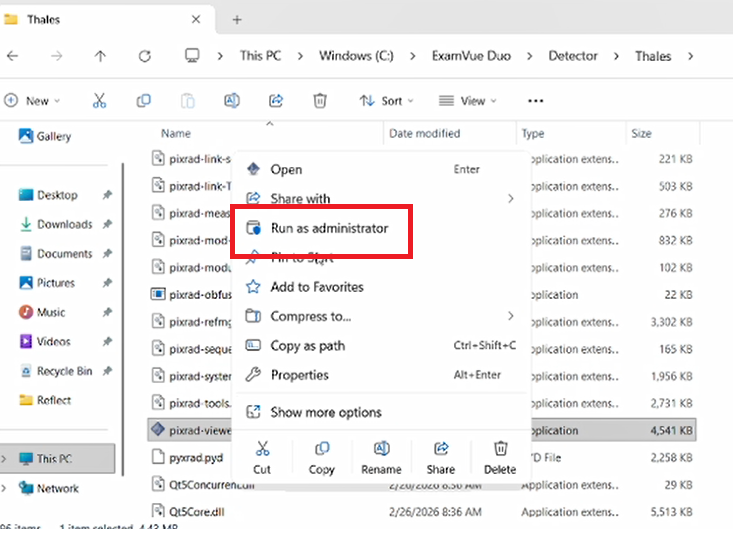

Open as Administrator.Launch the program with administrative privileges.

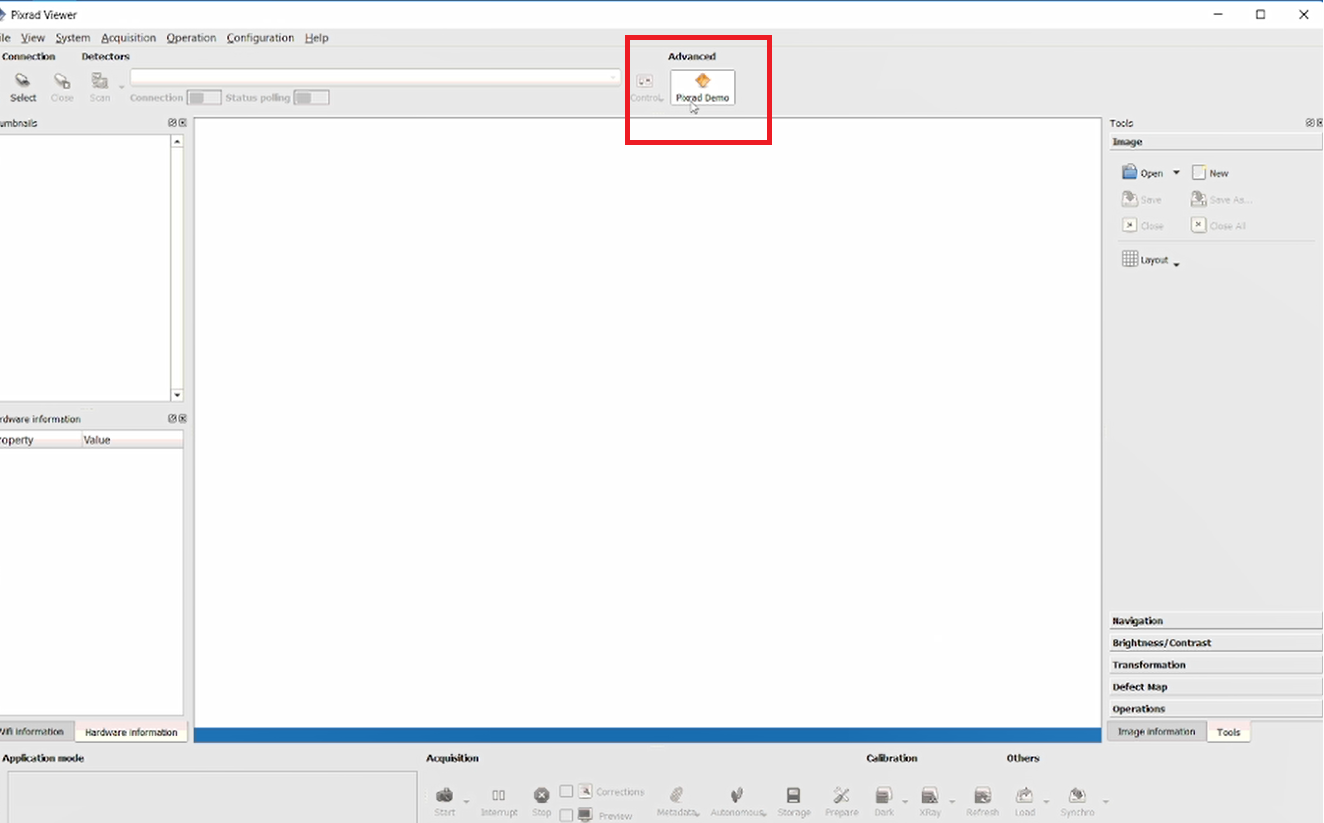

Select Pixrad Demo

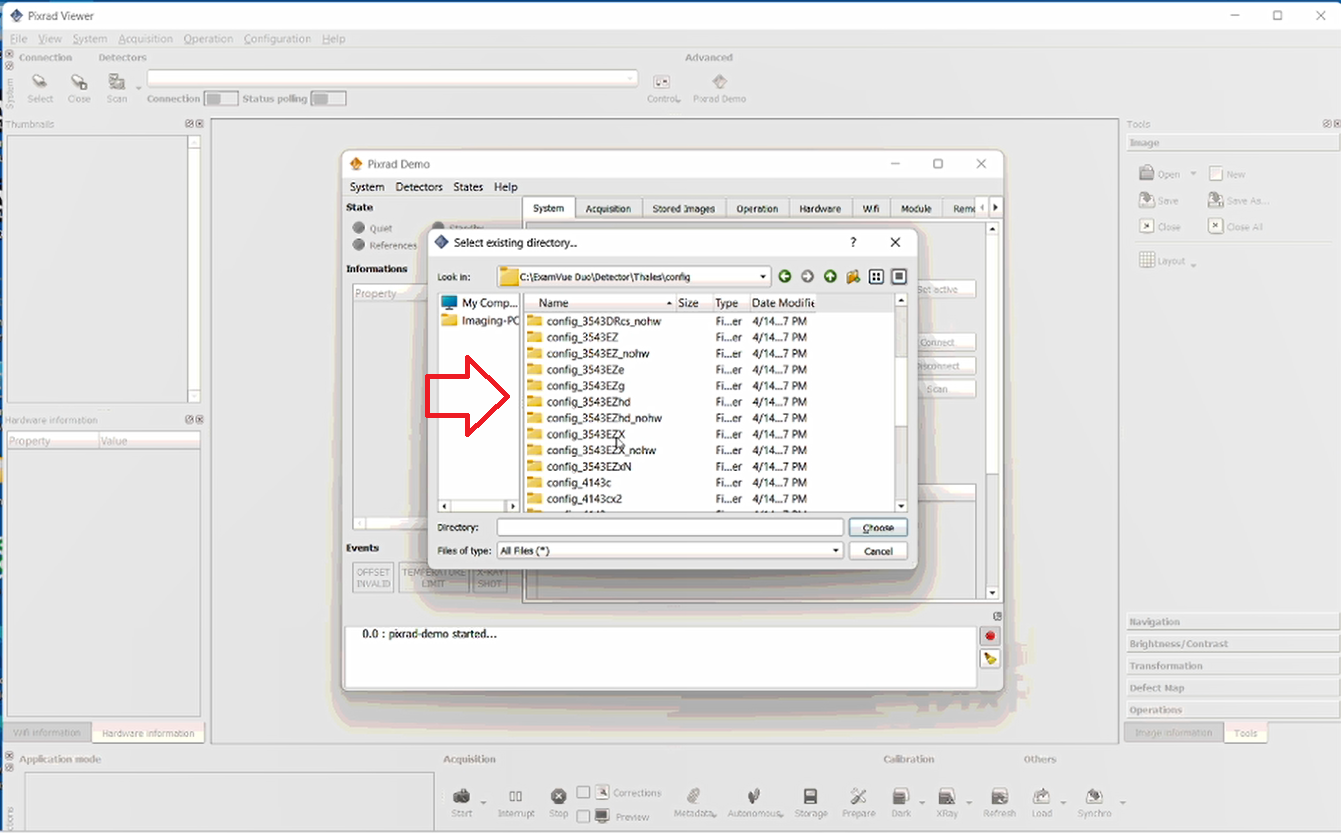

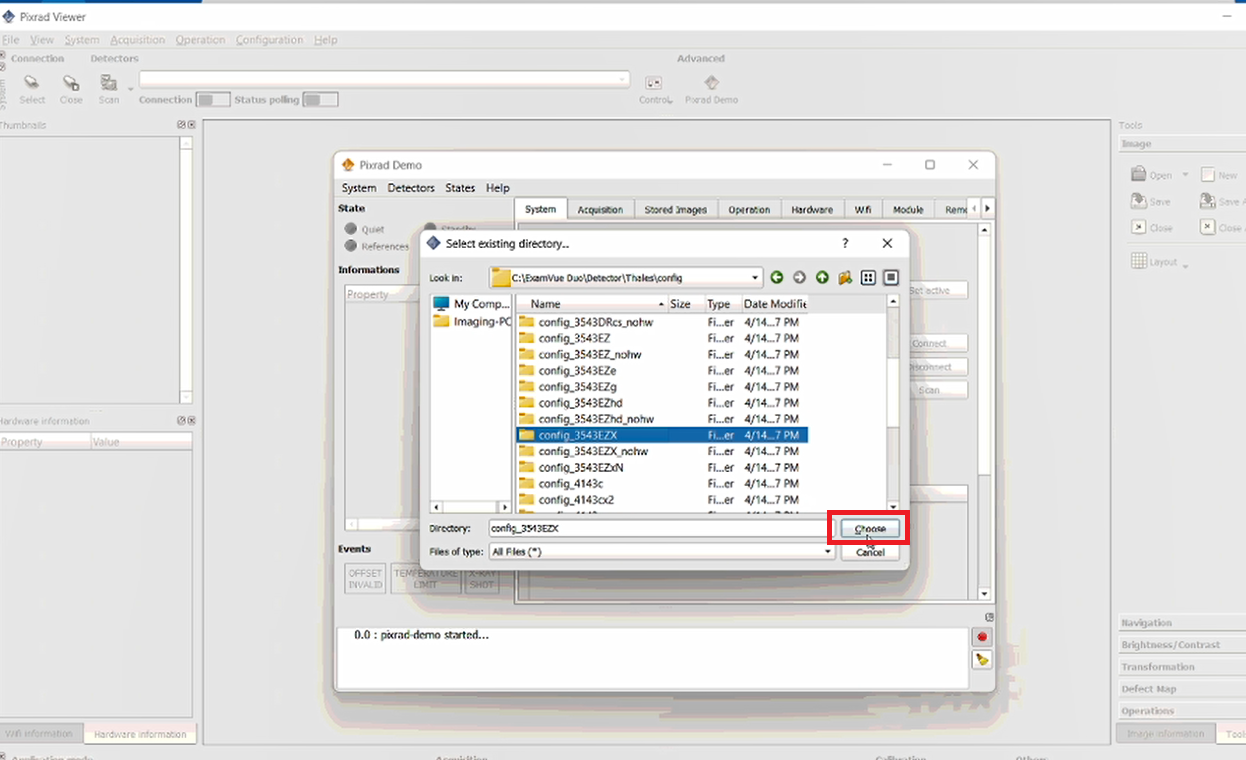

Select Panels Model
Select OPEN.

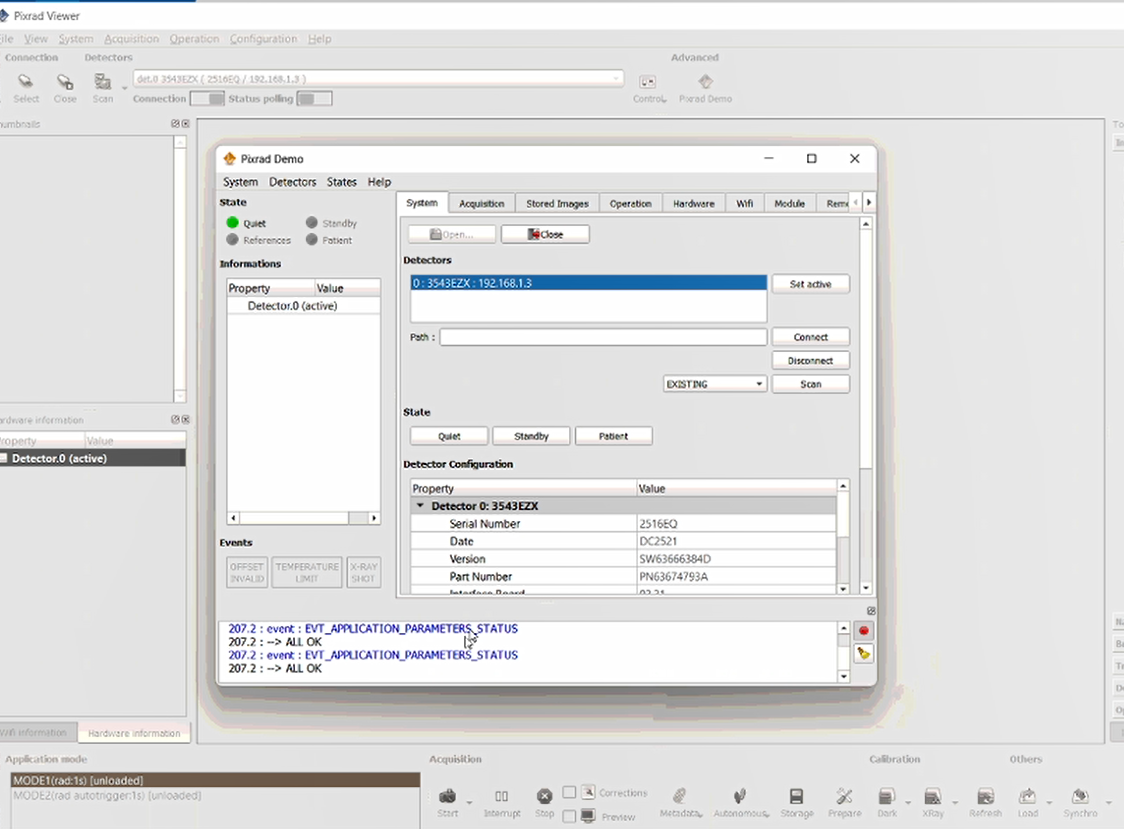

Successfully connected (Blue message)

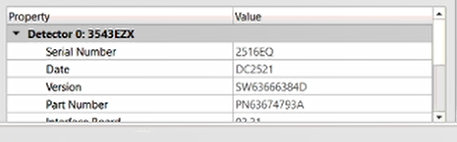

Firmware VersionPanel Serial Number
Firmware Version

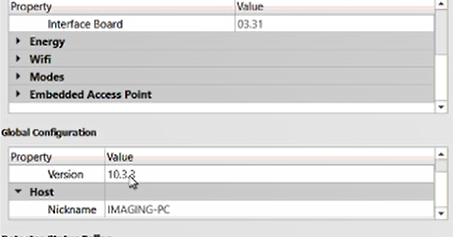

Note-10.3.3 Need for AP mode SetupApplication Version: 10.3.3
Calibration

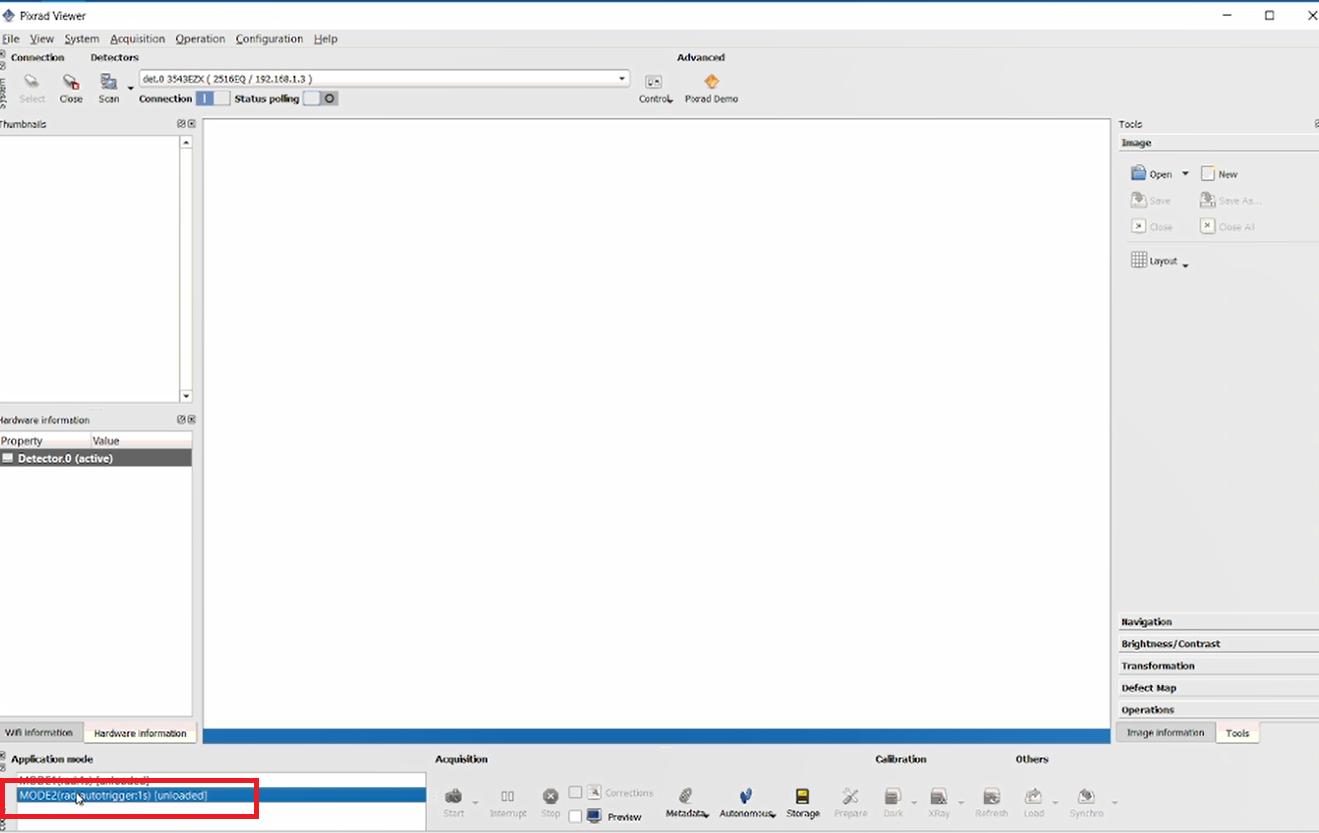

Select Mode 2 to begin Calibration Procedure To start the calibration process, choose Mode 2.
Select Control settings

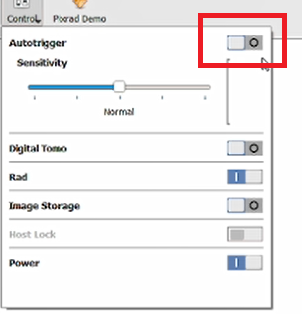

Activate AutoTrigger ON

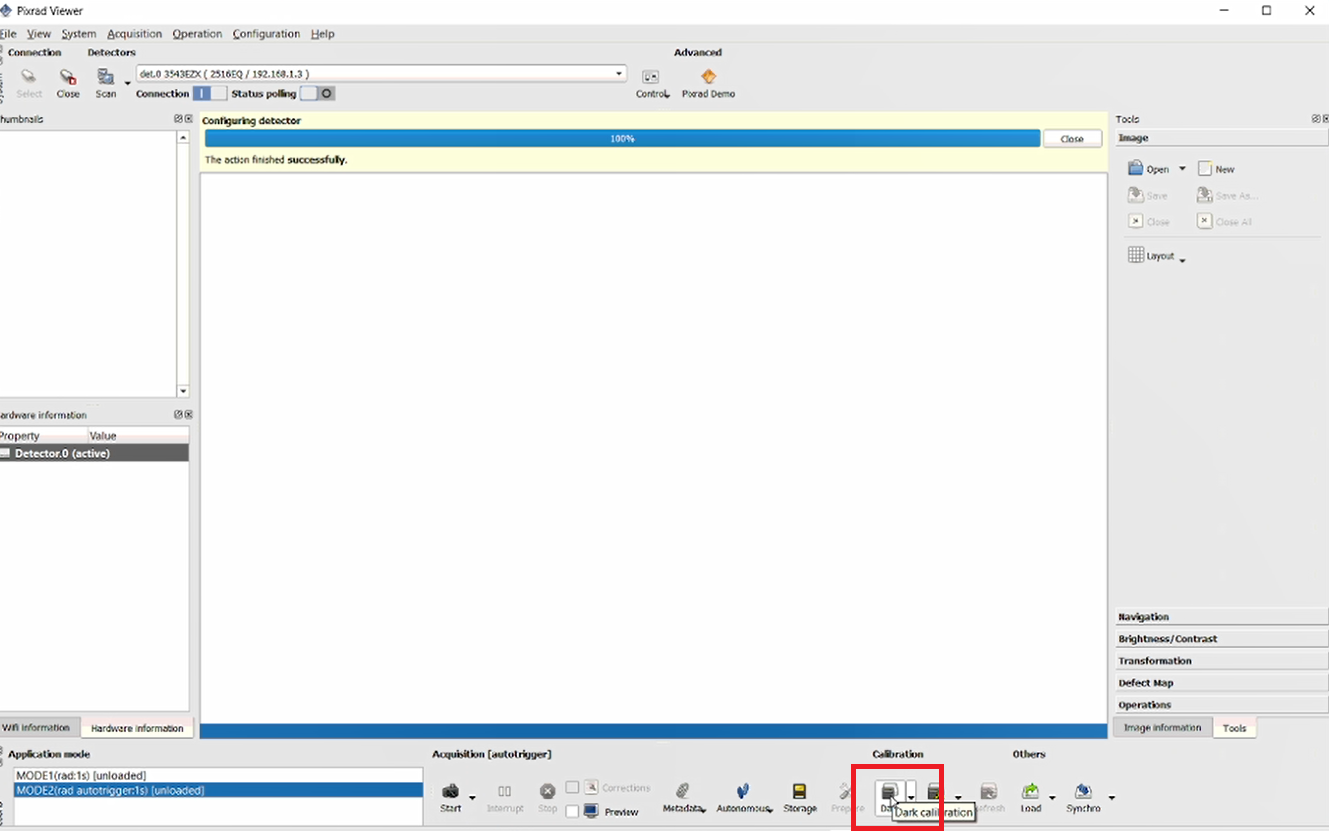

Select Dark Calibration first - Offset Calibration Begin by selecting Dark Calibration, followed by Offset Calibration.

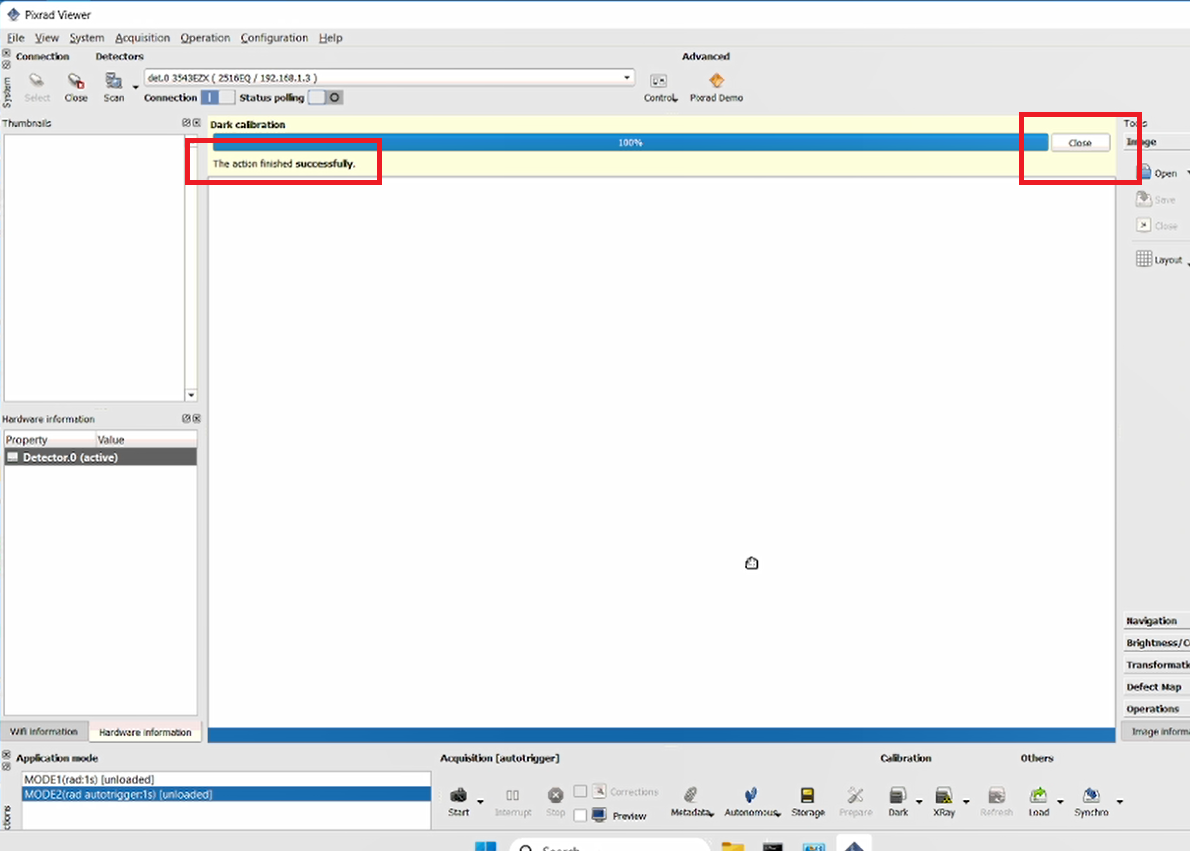

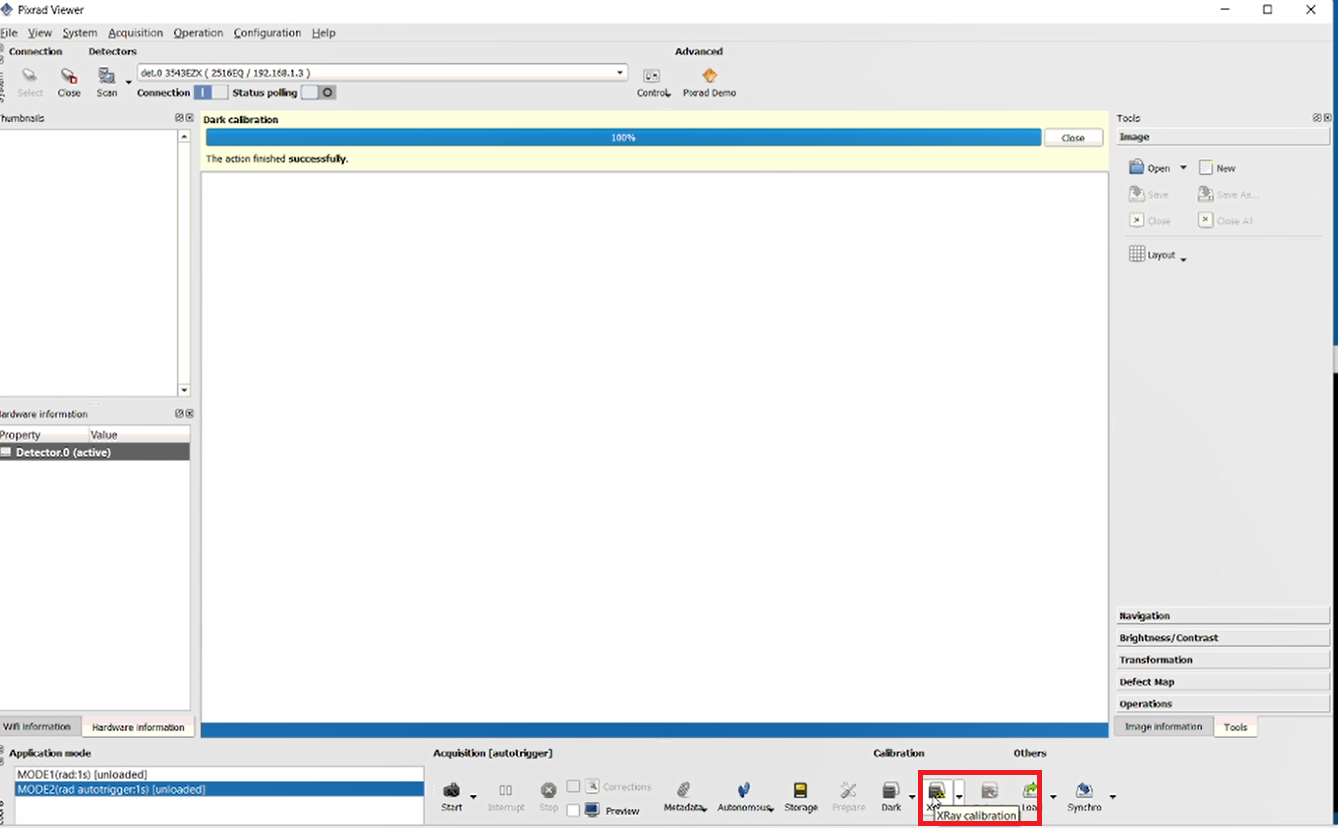

Wait until Dark Calibration completes and select close.Once the Dark Calibration is finished, select "close."
Select Bright Calibration.

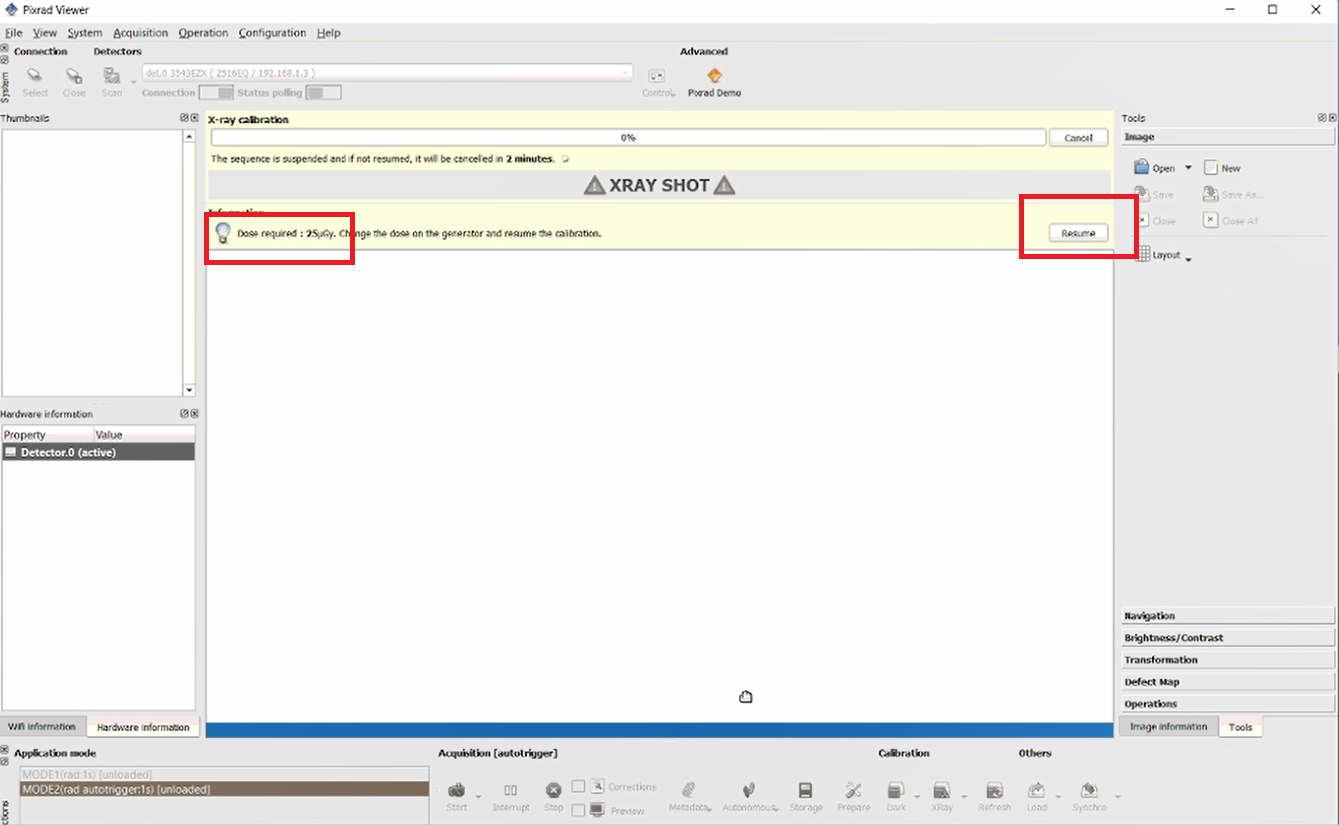

Select the desired Dose setting.
Choose Resume.

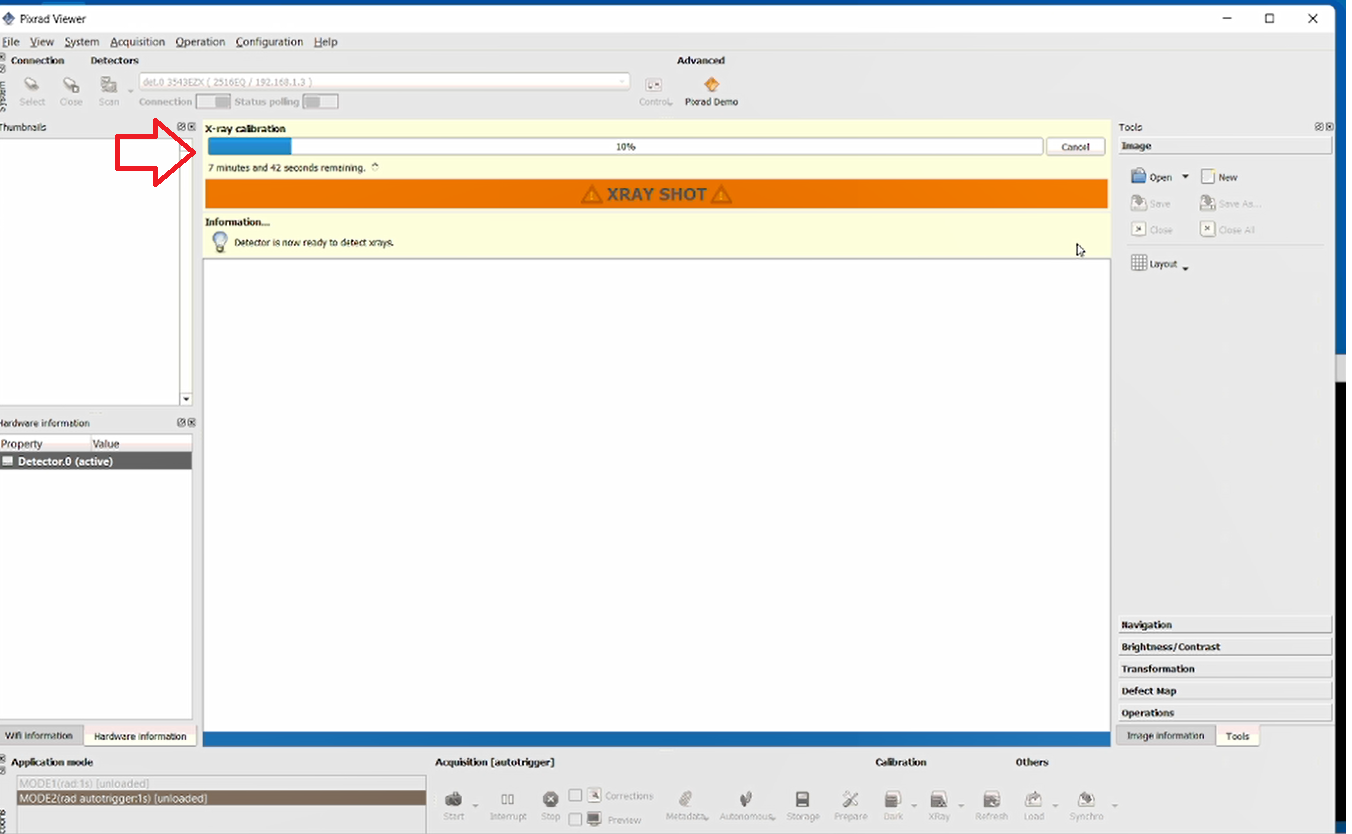

A total of 15 X-rays are required, consisting of five exposures each at:
Low Dose
Mid Dose
High Dose

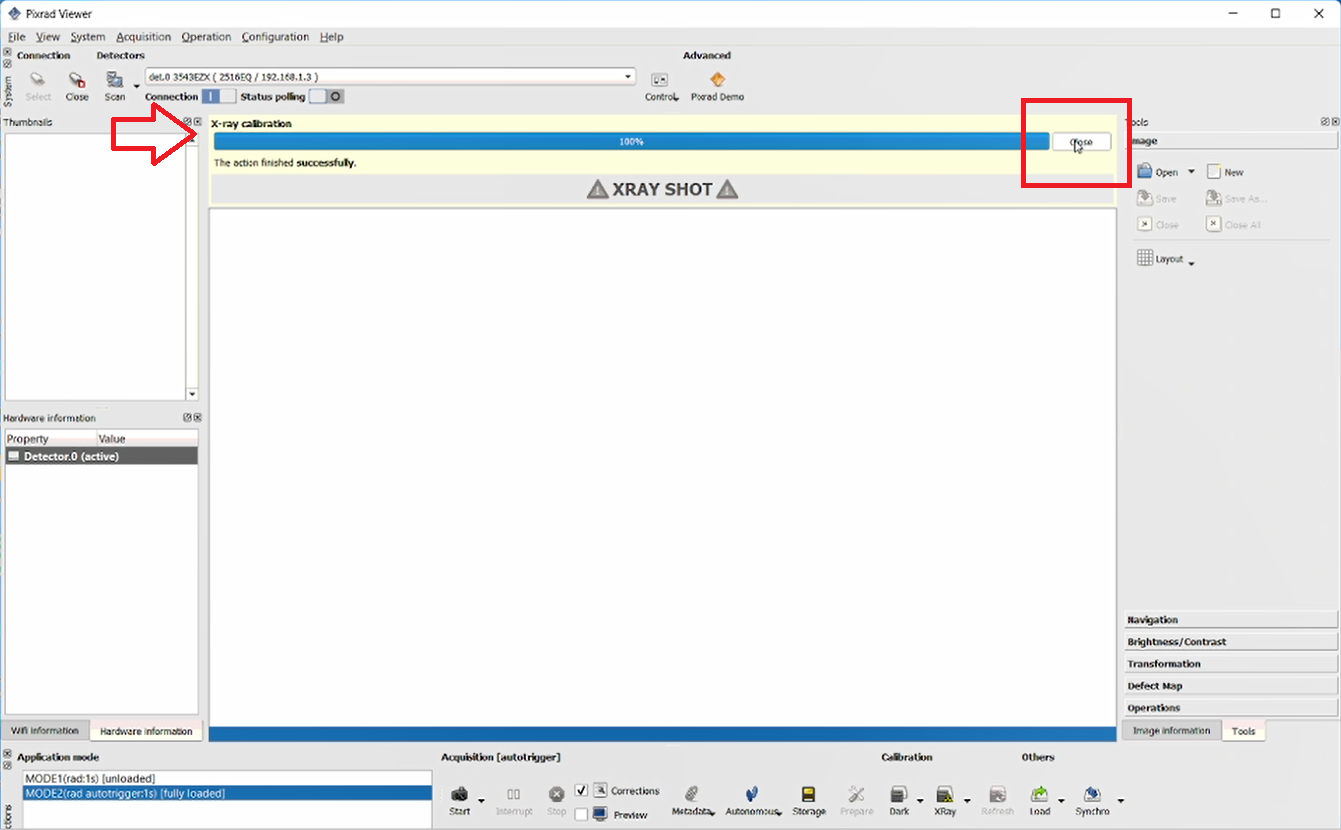

After finishing, choose the Close button.

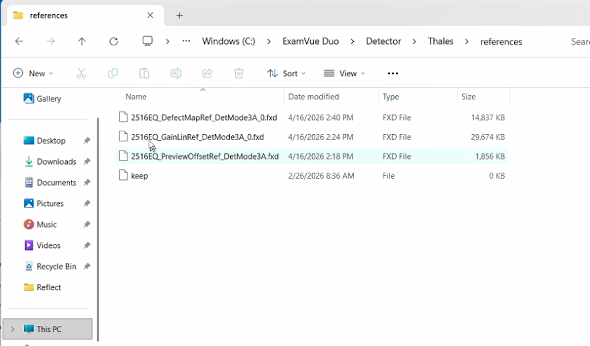

Calibration folder.

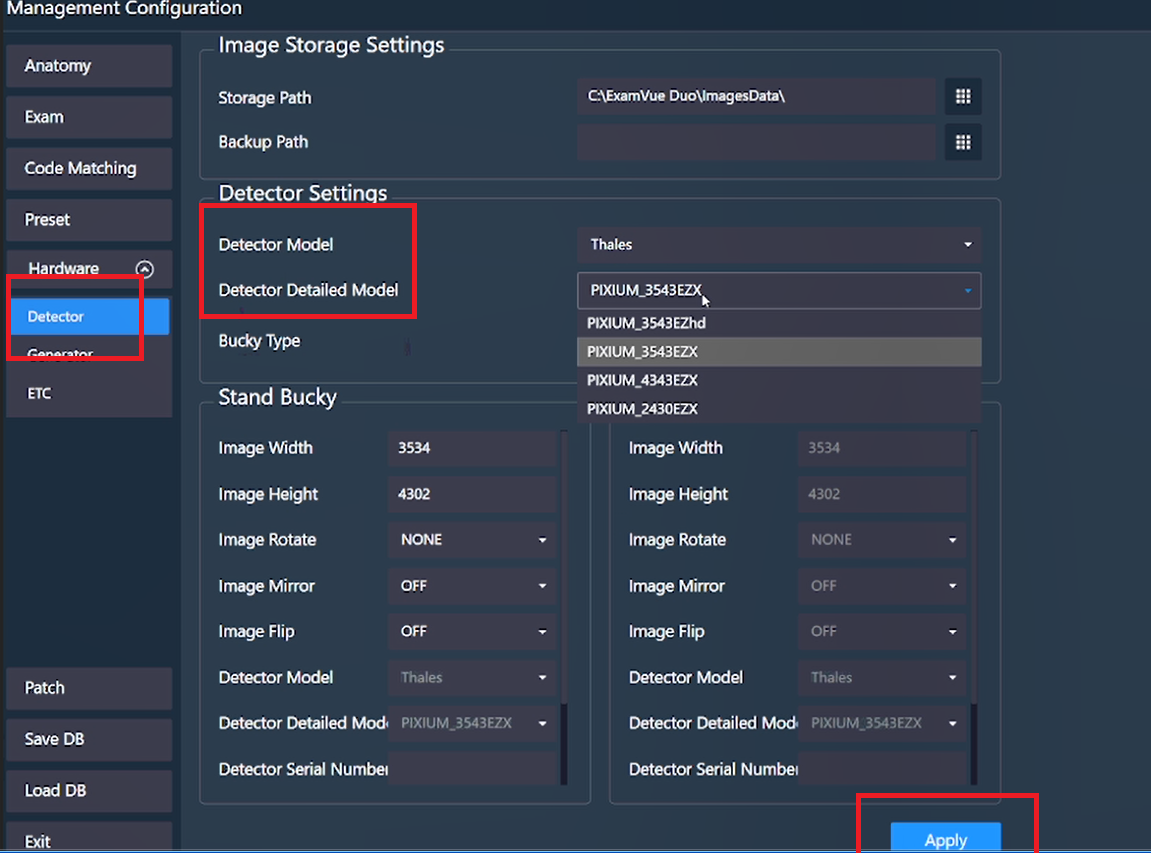

Open Manamenet SoftwareExamvue Duo
Select Examvue Duo.

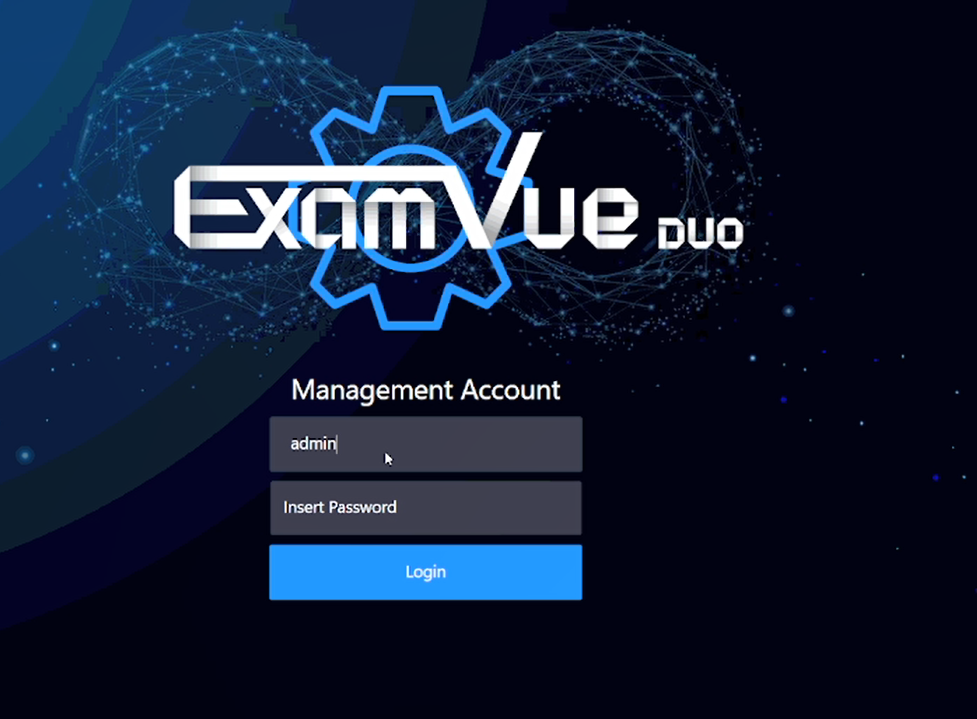

Open Management Software.
