AUTO-CALIBRATION DRE

AUTO-CALIBRATION DRE

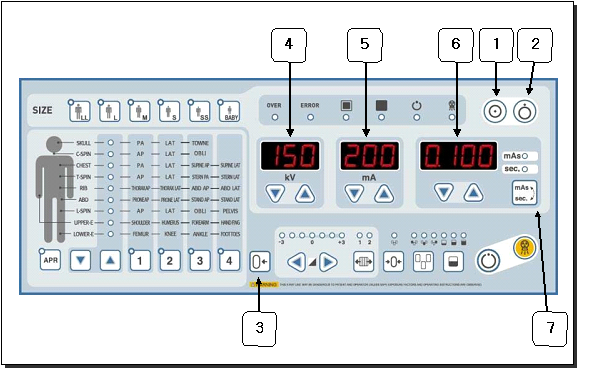

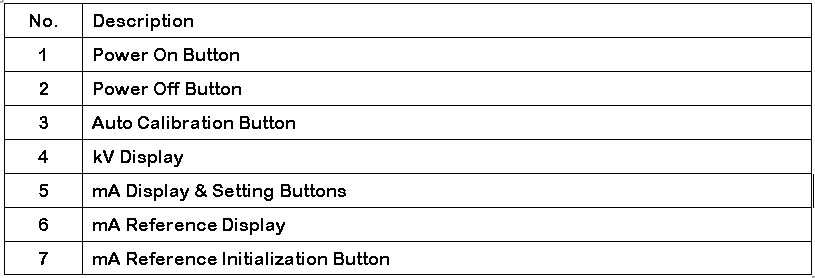

1. Control Buttons

​








2.  How to Auto Calibration



a.       Exposure Condition of Auto Calibration

- kV : 40kV ~ 120kV

- mA : 10mA ~ 160mA     (Small),

200mA, 250mA, 320mA, 400mA, 500mA, 630mA         (Large)

- Exposure time : 20 ms (reference), 160ms (preheat)

- Time : less than 20min. ( 2 sec interval )
















- If finished, displayed count number(Actual Exposure times. It depends on max. kW).



- Auto Calibration can be canceled push by any buttons.
